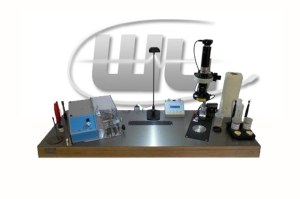

Microlab ML3700
On estimate
Reference Microlab ML3700 / ML3700PC
The Microlab product family is designed to prepare cross sections of conductor crimps and insulation crimps easily and comfortably within a few minutes. After cutting, polishing and etching of the sample, the image of the cross section can be visualized on the screen. Now a comprehensive quality check of the crimp can be performed by using the special designed image processing software X-Scan.
Equipped with a high quality 12x zoom objective the Microlab ML3700 is the ideal tool to conduct quality tests quick and comfortable. The high resolution camera delivers first-class microsections which can be easily measured with the automatic function of the image processing software X-Scan
Automatically generated records can be used as proofs of quality. Of course, X-Scan fulfills all relevant DIN standards and OEM specifications.
Performance features
- Complete micrograph laboratory integrated in a MDF board
- Easily operated optic with 12x zoom objective with an outstanding combination of zoom and resolution
- First-class Digital color camera USB 2.0 with special photosensitive CMOS Sensor and 1.3 megapixel resolution
- Well suited for cross sections from 0.1 to 10 mm² (AWG 28 – AWG 10)
- Comfortable analysis software X-Scan
Performance features in detail
- Complete system, integrated ergonomically and functionally in a MDF board laminated with stainless steel
- High quality optic with 12x zoom objective and convenient focusing (coarse and fine adjustment)
- High performance Digital color camera with photosensitive 1.3 Megapixel CMOS-Sensor, optical class 1/1.8“, USB 2.0, 1280x1024 Pixel
- Suitable for small and medium contact sizes from 0.1 to 10 mm²
- Standard terminal holder for cross sections up to 6 mm² (further sizes available on request)
- Longlife LED illumination at the microscope
- Energy saving working lamp for the Cutting-/Grinding unit
- Fitting gas tight mount for 7 calibration gauges
- Appropriate tool set for the sample preparation
- With comfortable analysis software X-Scan
- Compact dimensions
- Software calibration based on traceable standards incl. calibration certificate
- Cross-sectioning of the sample can be carried out without any disturbance of the terminal and cable stranding
- Optional: ancillary lens 0.5x for 12x zoom objective for extended applications
Specifications
- Type : ML 3700/EFP
- Voltage supply : 100 – 240 VAC 50/60 Hz
- Smallest extension (15” monitor) : 24x
- Largest extension (15” monitor) : 288x
- Smallest crimp height for a full screen : 0.25 mm
- Largest crimp height for a full screen : 8.0 mm
- Measurement resolution μm per pixel : 13 –7.31- 5.17-3.72-3.00-2.45- 2.10- 1.84-1.64-1.47- 1.34- 1.23- 1.14- 1.06-
- Optical zoom grades : 0.58 - 1.0 - 1.5 - 2.0 - 2.5 – 3.0 – 3.5 – 4.0 – 4.5 - 5.0 – 5.5 – 6.0 – 6.5 – 7.0
- Camera resolution : 1280 x 1024 Pixel
- Camera connection : USB 2.0 Port (Type: mini USB plug)
- Object illumination : Longlife LED ring light for true to color pictures
- Fine polishing : Electrochemical
- Cross section sizes standard : 0.1mm² - 10mm² (AWG 28 – AWG 10)
- Recommended temperature : 22°C +/- 5°
- Dimensions (W x D x H) : 1200mm x 430mm x 500mm
- Weight : 27 kg
Réf : Microlab ML3700
