KN30

 Our models are highly versatile crimping units. The crimping units have a series of built-in standard features which offer the user a very high degree of flexibility as well as the possibility to adapt to many technical requirements. The crimping units are all available with full guards and footswitch. All models can accept most applicators on the market.

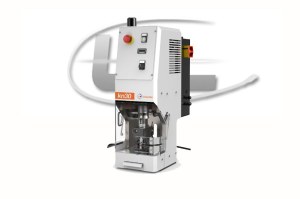

The KN 30 model is a bench crimping unit with crimping force of 3 ton. The standard equipment of KN30 includes the crimp height adjustment, lamp for working area lighting and a spool-holder arm. The machine has as standard feature also a quick-change clamping device for miniapplicators to reduce working changeover times.

On request, the machine can be equipped with a crimp force monitor.

TECHNICAL SPECIFICATIONS

• Crimping force : 30 kN (1 ton)
• Electricity Supply : 230 V - 50/60 Hz
• Power : 1,1 Kw
• Noise level : < 75 dB
• Standard stroke : 40 mm
• Gauge capability : max 16 mm² (AWG 7)
• Cycle/h : 5000
• Weight : (95 Kg)
• Weight with packing : (1100 Kg)
• Dimensions : mm 320 x 500 x 750 h
• Dimensions with packing : mm 800 x 600 x 1000 h

 Réf : KN30
