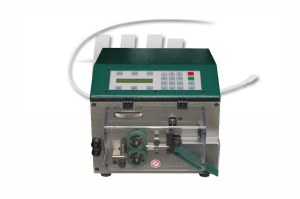

CARPENTER 33

The New Model 33 Compu-Cut is an all electric bench top Measure & Cut Machine designed to deliver outstanding Performance, Quality and Affordability.

This compact unit utilizes High Torque Stepper Motors for controlling both the Material Feed Rollers and Blade Mechanism.

Compared to competitive machines in its class the Model 33 drives both Material Feed Rollers ensuring accurately measured pieces.

Our unique Wire Guide and Blade Design produce Clean, Square and Accurate cuts on a wide range of hard to cut materials.

Every machine comes Standard with (6) Wire Guides, Wire Guide Holder, Urethane Feed Rollers, Durable Powder Coat Finish and 1 Year Limited Warranty.

STANDARD FEATURES :

• High Torque Stepper Motors
• Urethane Feed Rollers
• HSS Cutting Blades
• Batch Processing
• 6 Wire Guides & Holder
• Automatic Wire Loading & Unloading
• Safety Guard withInterlock Switch
• "Out of Material" Sensor
• Power up Memory Retention
• 4 Programmable Feed Speeds
• Inches or Millimeters selectable
• 3 Programmable Cut Speeds
• "Material Cut" Sensor
• Automatic Switching Power Supply

SPECIFICATIONS :

• Cut lenght : .020" (min) to 9,999.99" (max)
• Lenght increments : .010"
• Amount 1 to 999,999
• Stranded copper wire : 8 AWG to 32 AWG ( Material Dependent)
• Multi-conductor cable : .375" OD (Material Dependent)
• Plastic tubing : .375" OD (Material Dependent)
• Production rate : 9,960 (4" pieces per hour )
• Voltage : 85 to 264 VAC, 47 to 63 Hz, 3Amp. (Auto Switching)
• Dimensions : 10.5" W x 10.0" H x 14.0" D (including safety guard)
• Weight : 35 lbs.

OPTIONAL FEATURES :

• Single Plane Wire Straightener
• Knurled Metal feed Rollers
• Custom Tubing Blade

Réf : CP33
