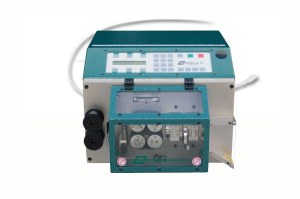

CARPENTER 36B

The New Model 36A Compu-Cut has been specifically designed to provide Clean, Square Cuts on a broad range of wire, cable and tubing.

This machine's unique design supports the material being cut on both sides of the cutting blade ensuring Clean Square cuts.

The Model 36A comes in two versions, the M36A-B which uses a Feed Belt material transport or the M36A-R which uses precision Knurled Feed Rollers.

Both versions use a pneumatically operated blade mechanism that incorporates a standard utility knife cutting blade. This unit excels when processing flexible and rigid type tubings including Split Convoluted, Viton, PVC, Silicone, Rubber and many more.

Our user friendly menu driven software makes the Model 36A simple to program and easy to operate. A key feature of this new machine is extremely low operating costs because the machine utilizes only cut blade which is a standard utility knife blade costing only pennies!

With software features that include a large Memory Storage, Inch or Millimeter operation, Batch Processing and Kitting the New Model 36A will increase your production Speed, Accuracy and Efficiency.

As with every Carpenter machine the New Model 36A comes with a durable powder coat finish.

STANDARD FEATURES :

• Feed Belt or Knurled Roller Material Transport

• Selectable Inches or Millimeters

• Pneumatic Blade Mechanism

• "Out of Material" Sensor

• Utility Knife Cut Blade

• 1-Input & 1-Exit Guide with Machine

• Material Load & Unloading

• Safety Guard with Interlock Switch

• Batch Processing

• Automatic Switching Power Supply

• 100 Kit Program Memory Storage

• Durable Powder Coat Finish

• 500 Single Program Memory Storage

• "Material Cut" Sensor

• Electronically Programmable Password

• User Friendly Menu Driven Software

• 5 Programmable Feed Speeds

OPTIONAL FEATURES :

• Wire Marker Interface

• Wire Stacker Interface

• 16 Pcs Material Guide Set SPECIFICATIONS:

• Cut Length : .05" to 9,999.99" or 1.2mm to 99999.9mm

• Length Increments : .01"

• Amount : 1 to 999,999

• Round Material : 1.0" or 25.4mm (Max) Material Dependent

• Air Supply : 80-100 PSI or 5.4-6.2 BAR (Clean, Filtered & Lubricated Air Only)

• Voltage : 88 to 264 VAC, 47 to 63 Hz, 4 Amp (Auto Switching)

• Prodution Rate : 5000 4.00" Pcs/Hr

• Dimension : 13.7"W x 11.0"H x 17"D (includes Safety Guard)

• Weight : 52Lbs. / 24Kg

Réf : CP36B
