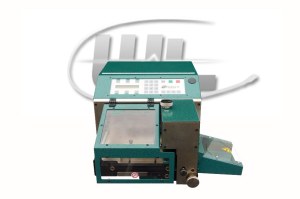

CARPENTER 42C

The Newly re-designed Model 42C Compu-Cut is a Powerful High Performance Measure & Cut Machine that's designed to cut a broad range of materials.

This New unit has a Pneumatic Blade Mechanism that easily slices through the toughest materials, yielding a high production rate of 8,800 4 inch pieces per hour.

The Model 42C uses two 1 inch diameter Feed Rollers that are controlled by a high torque Stepper Motor ensuring excellent power and accuracy.

Preventive maintenance has been virtually eliminated, plus you can change Feed Rollers and Blades in a matter of minutes, not hours! All machine functions are fully programmable via our user friendly menu driven software, making setup quick and simple.

As with all Carpenter Equipment the Model 42C is a heavy duty built machine designed for large and small production jobs, from cutting Heat Shrink Tubing to large Multi-Conductor Cables.

Every machine has a durable Powder Coat Finish.

STANDARD FEATURES :

• 5 Programmable Feed Speeds
• Selectable Inches or Millimeters
• "Out of Material" Sensor
• Long Exit Chute
• "Material Cut" Sensor
• Urethane Feed Rollers
• Durable Powder Coat Finish
• Safety Guard & Exit Chute Interlock Switch
• Batch Processing
• Automatic Switching Power Supply
• Program Stacking
• 1 Year Limited Warranty
• 999 Program Memory
• HSS Cutting Blades
• Electronically Programmable Password
• Fully Adjustable Material Guides
• High Torque Stepper Motor Feed

OPTIONAL FEATURES :

• Wire Marker Interface
• Wire Stacker Interface
• Short Exit Chute
• Knurled Metal Feed Rollers

SPECIFICATIONS :

• Cut Length : .02" (Min) to 9,999.99" (Max)
• Length Increments : .01"
• Amount : 1 to 999,999
• Cutting Width : 4.0" (101.6mm) Max.
• Cutting Diameter : 1.0" (25.4) Max. (Material Dependent)
• Short Exit Chute : For 3.0" lengths and shorter
• Voltage : 85 to 264 VAC, 47 to 63 Hz, 3Amp. (Auto Switching)
• Air Supply : 80 - 100 PSI / 5.4 - 6.8 Bar (Lubricated Air Supply)
• Dimensions : 13.75"W x 11"H x 20.5"D (Excludes Exit Chute)
• Weight : 64Lbs. / 29Kg

Réf : CP42C
