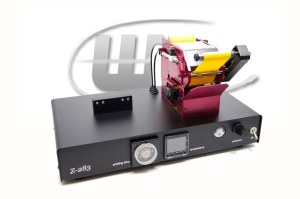

Z283

The Z-283 can be used either as a normal table marking device with a foot pedal, or it can be connected to a stripping machine.

The existing interface allows the connection to products by different manufacturers.

Wire straightener, foil rewinding system and wheel lock are add-ons that allow for large series production.

Technical Data

• Number of Printing Wheels : Character Height 1,2 mm to 2,3 mm 24 pieces  / Character Height 2,5 mm to 4,0 mm 16 pieces
• Working range cable outer-ø : cable ø minimum 1,0 mm  / cable ø maximum 12,0 mm
• Signs per printing wheel : Character Height 1,2 mm - bis 2,3 mm 28 signs (Standard)  / Character Height 2,5 mm - bis 4,0 mm 20 signs (selectable)
• Number of Markings per foil : 25'000 to 40'000 markings
• Foil type : Available in different colors and quality
• Dimensions : 380 x 260 x 220
• Weight : 8,200 kg (18.0 lbs)
