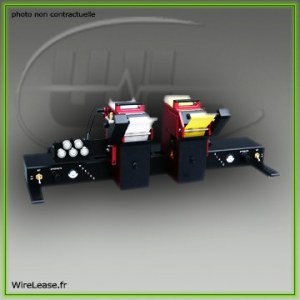

Z284

Because of the simultaneous marking of the cable start and cable end, great efficiency is obtained.

The Z-284 is connected to a stripping machine. The existing interface allows the connection to products of different manufacturers.

One or both printing heads can be used.

Technical Data

• Number of Printing Wheels : Character Height 1,2 mm to 2,3 mm 2x24 pieces max.
• Working range cable outer-ø : cable ø minimum 1,0 mm / cable ø maximum 8,0 mm
• Signs per printing wheel : Character Height 1,2 mm to 2,3 mm 28 signs (Standard)
• Number of Markings per foil : ca. 30'000 markings
• Foil type : Available in different colors and quality
• Dimensions : 635 x 280 x 200 Marking unit  / 380 x 270 x 75 Control unit
• Weight : 8,500 kg (18.7 lbs) Marking unit  / 5,500 kg (12.0 lbs) Control unit

 Réf : Z284
