Z500

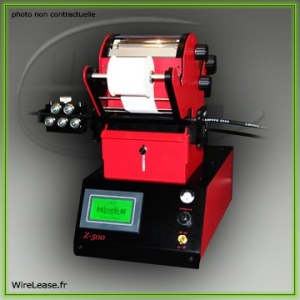

The printing unit Z-500 is an electro-pneumatic hot-stamping unit used to print on wires, cables, and hoses.

The hot-stamping process produces abrasion-resistant markings in high quality. In this process a heated printing wheel packet presses printing foil onto the material to be printed on.

All printing parameters such as contact pressure, printing time, and temperature can be selected by the user. In addition, the Z-500 is furnished with 3 power levels.

This allows the printing of thin cables with few characters or thick cables with many characters.

Technical Data

• Connected load : 115 VAC, 60 Hz, max. 425 VA / 230 VAC, 50 Hz, max. 425 VA
• Compressed air supply : 0,7 MPa
• Heating control : Sensor controlled heating control 90 - 180 °C
• Cable Ø minimum-maximum : Single marking 1,6 mm bis 16,0 mm / In Line production 1,6 mm bis 16,0 mm / Optional in Line prod. 15,0 mm bis 24,0 mm
• Production rate : Approx. 0.5 seconds per printing action (depending upon dwell time and stroke)
• Number of wheels to be installed with letter height : 1,5mm bis 2,3mm 1 to 44 Printing wheels (positioning freely selectable) /
  2,5mm bis 3,5mm 1 to 26 Printing wheels (positioning freely selectable)
• Letter heights in mm : 1.5 / 1.6 / 1.6 vertical / 1.7 / 1.8 / 2.0 / 2.1 / 2.3 / 2.5 / 3.5 / 3.5 flat
• Numbers of sings per wheel : 40
• Available signs : Letters (A to Z), Numbers (0 to 9 - / . and a Blank)
• Foil types : various qualities and colors
• Foil measurements : 29 mm x 120 m / 58 mm x 120 m / 116 mm x 120 m
• Foil consumption : Continuously variable (adapted to letter height)
• Measurements : (L x W x H) 470 x 230 x 400 / 470 x 340 x 400 with cable straightener
• Weight 20kg
• Noise level < 70 dB (A)

 Réf : Z500
