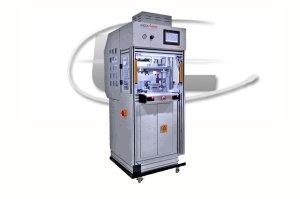

HI6
On estimate
Reference HI6
Single our double stations moulding machines with horizontal injection
and vertical mould clamping.
- Integrated vertical injection unit with separate or integrated tank.
- Two chromium-plated and tempered driving shafts with bush bearings.
- Multi-language software for storing up to 100 programs.
- Mould clamping force : min 1,2 max 20 T.
- Injection pressure: 0,5 - 4 MPa.
Technical Specification
- Operating temperature : max 230 °C
- Integrated and moving tank
- Melting tank capacity : 3 l ( x1)
- Nr. Temperature control zone : 2
- Power : 4 Kw
- Clamping force : 1,2 T
- Clamping system : pneumatic
- Clamping stroke : 125 mm (150 mm optional)
- Control system : PLC+5,7”HMI
- Mould dimensions : max 300x120x150 mm
- Finished product dimensions : max 50x45x7 mm
- Mould Nr. : 1
- Ejector
- Stations number : 1
All data are preliminary and should be specified according to the application
All the models characteristics are likely to change as a function of the parts to produce
