MG250
On estimate
Reference D10

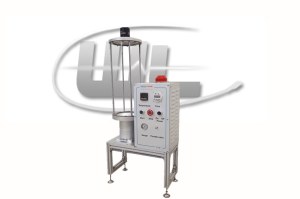

The Manual Gun 250 is an electronically controlled unit for the injection of polyamide resins. It is designed for carrying out laboratory tests or small series. The MG 250 can be equipped with the optional column holder.
- Pressurized tank integrated with the manual gun
- Light gun made in aluminium
- Compact design
Technical Specification :
- Melting tank capacity : 0.3 l
- Nozzle : 36.4°
- Operating temperature : max 230° C.
- Nr temperature control zones : 1
- Power : max 0.5 kW
- Adjustable parameters : temperature, air pression, injection time
- Mould dimensions : max 150x60x100 mm
- Finished product dimensions : max 50x50x5 mm
- Power supply : 200-240 VAC / 50/60 Hz
- Compressed air : min 5 Bar / 0.05 m³-min
- Dimensions / Weight : 275 x 510 x 475 mm / 8Kg
Réf : MG250
