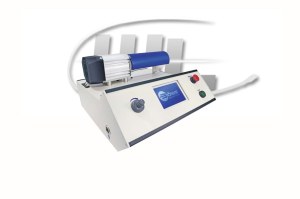

BAV1016

wire twister BAV 1016

• Twist multiple wires into a single assebly
• Cable profile from 0.05 to 2.5mm²
• 2-5 single wires are twistable
• Min. cable length 40mm
• Max. cable length 2m (standard) optionally to 4m
• Programming with the touch panel
• Password protected setup
• Rotation (clockwise/anticlockwise) from 1 to 999 adjustable
• Winding direction (clockwise/anticlockwise) programmable
• Program storage (up to 999 programs)
• 200 to 2500 revolutions per minute steplessly variable
• Counter
• Connection for foot switch
• No damages to the contacts

technical specifications :

• dimensions: 370mm x 390 x 220mm
• weight: 10 kg
• power connection: 220 V
• Corresponds to the CE- and EMV-machine
• guidelines.

Accessories optional :

• Holder for the opposite side
• Foot switch

Réf : BAV1016
