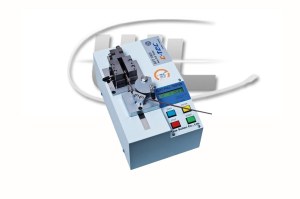

Pull tester APT1000

The Pull tester series APT consists of three force variants of motorised pull force test devices. In each variant there is a choice between three different speed ranges.

APT pull tester are used for the destructive pull tests of crimp connections. Thereby the crimp connector is pulled off from the cable. The connector and the cable will be destroyed between insulation crimp and wire crimp in most cases.

The peak value of the measuring is indicated in the display. Depending on the requirements different pull speeds can be set. The test results can be automatically transmitted into an Excel file. Also the pull off curve can be monitored on the PC.

Performance features

• Firm fixing of the terminal at crimp and cable sides
• Displaying of the pull force values in real-time mode on the device display
• Automatic transmission of the results in Excel format
• Motor drive causes a stable and exact measurement
• Infinitely variable pull speeds (in a given range)

Further performance features

• Wire-wire (joint) pull force test is possible, too
• Peak force can be displayed in N, lb or kgf
• Two different terminal clampers included in standard delivery
• Complies with CE guidelines
• Simple handling
• Compact dimensions
• Calibration certificate available on request
• PC software on Windows basis available

Available models

• APT 250 for 250 N maximum force
• APT 500 for 500 N maximum force
• APT 1000 for 1000 N maximum force
• Three different pull speeds selectable (25-50 / 50-100 / 100-200 mm/min.)

Réf : Pull tester APT1000
