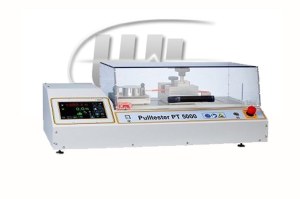

Pull tester PT2500

On estimate

Reference PT5000

  The Pulltester PT 2500 is an innovative motorised pulltester to check the tensile strength of crimp connections, splice connections etc. Due to the modern colour screen the result can be displayed as value and also as a graphic chart. The graphic presentation of the force/path diagram facilitates the rating of the material performance during the pull test. The measurement is recorded path and time synchronously and presented as a high resolution graph on the display. Thanks to the modern touch screen no additional PC is needed for displaying the results and operating the machine.


Performance features

  • Path and time synchronous measurement and graphic presentation of the curves in real time
  • Displaying of all relevant measuring data, for instance minima, maxima etc.
  • Measuring range from 0 to 2500 N
  • Speed-controlled motor guarantees even pull rates up to 300 mm/min.
  • Modern touch screen with intuitive and multilingual operating possibility
  • Independent useable checking device without requesting an additional PC


Further performance features

  • Easygoing quick start for the tests during production
  • Possibility to generate individual measuring procedures according to application
  • Measurements can be stored directly in the pulltester
  • Interfaces for export or import of data
  • Option for serial measurements in table format or for detailed measurements with complete sets of measuring points
  • Measurement data can be imported in Excel as .csv file
  • Multiple options like languages, system of units (metric/imperial or N/kgf/kp), etc.
  • Universal use due to a flexible mount for the sample holder
  • Changing of sample holder with few hand grips


Possible test routines

  1. Pull till break
  2. Pull till defined force and hold force
  3. Pull till defined force and hold way
  4. Pull till defined force and release


Technical data

  • Max. capacity : 2500 N
  • Max. speed range : up to 300 mm/min.
  • Resolution (force/path) : 0.1 N / 0.01mm
  • Measurement error : <0.5% F.S.
  • Power supply : 100 – 240 V / 50/60 Hz
  • Power consumption : max. 390W
  • Dimensions (W x D x H) : 790 x 344 x 210 mm
  • Weight : approx. 55 kg (plus cable clamp 8 kg and clamping crown 5 kg)
