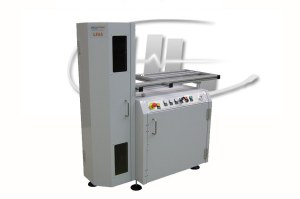

LF65 - 120 Kg
On estimate
Reference LF65 - 100 Kg
The Prefeeding System LF65 allows to dereel cable or wire spool from 400 to 600 mmin diameter.
It can be integrated in line with every cutting or cutting and stripping machine, marking machine and automatic cut-strip terminating machine, allowing a correct and linear feeding of the cable with a constant tension in both dereeling directions.
The operating machine can be placed on the upper bench top of the dereeler, creating a compact processing line.
Technical Specification :
- Spool diameter : min 400 mm / max 600 mm
- Spool weight : max 100 Kg
- Wire dimensions : Round cable Ø min 1.5 mm,max 14mm /Flat cable width max 12 mm
- RPM : max. 150
- Reservoir : Pneumatic adjustment of the cable tension (10-150N) by a fine pressure regulator. Reservoir capacity ca. 4m
- Power supply : 230-240 VAC/50-60Hz/ 16 AF
- Compressed air : 6 Bar dry and not oiled
- Dimensions / Weight : 1050 x 920 x 1450 mm / 130 Kg
- Feeding speed : 3,5 m/s
Réf : LF65
