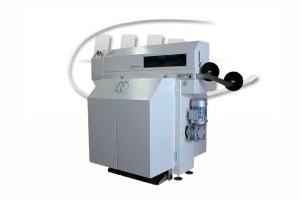

LF90 - 500 Kg

The Prefeeding Systems LF80 can be integrated in processing lines with every cutting or cutting and stripping machine, marking machine and automatic cut-strip terminating machine, allowing a correct and linear feeding of the cable with a constant tension in both unwinding directions.

Technical Specification :

• Spool diameter : min 600 mm/max 800 mm
• Spool weight : max 250 Kg
•  Wire dimensions : Flat cable width max 12 mm / Round cable Ø max 14 mm
• Dimensions / Weight : 1550 x 1050 x 1300 mm / 150Kg
• Reservoir : 6 m
• Feeding speed : 3,5 m/s

 Réf : LF80
